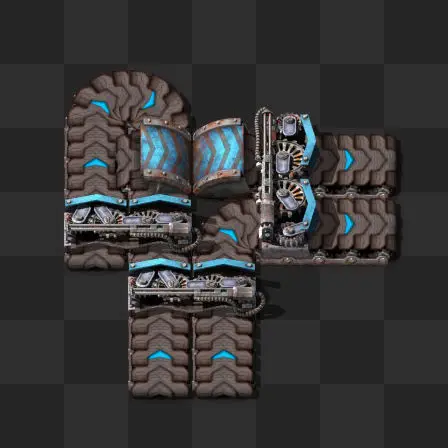

2-2 lane corner balancer
- Size (tiles, width x length)
- 5 x 5
- Throughput unlimited
- No
Factorio BlueprintsAll belt balancersFactorio 2 Lane Balancer Blueprint
Factorio 2 Lane Balancer Blueprint
Evens out the lanes of two side-by-side belts in 3 x 8 tiles with 3 splitters, plus a 5 x 5 corner version. Not marked throughput unlimited.

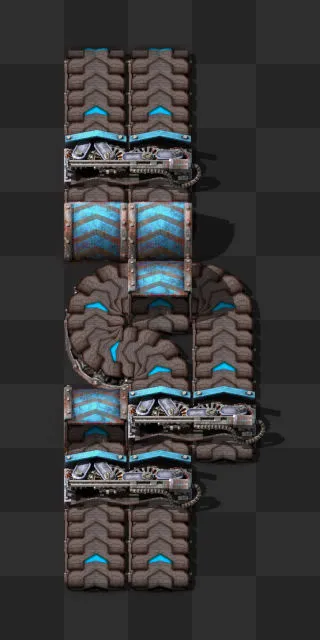

In-game render of the 2 lane balancer blueprint
2
- Input belts
- 2
- Balancer type
- lane
- Size (tiles, width x length)
- 3 x 8
- Listed belt tiers
- redbluegreen (turbo)
- Throughput unlimited
- No
- Entities in the blueprint
- Express transport belts
- 9
- Express underground belts
- 4
- Express splitters
- 3
- String exported by Factorio
- 2.0.69.0
- Designer
- raynquist
String exported by Factorio 2.0.69. Decoded and checked by this site; not test-imported in the game.
Belt tier note
Compatible underground tiers listed by the source: red, blue, green (turbo). No yellow alternate in the collection.
Source
- Book
- Raynquist's Belt Balancers Fall 2025
- Book folder
- 2 to x
- Name in the book
- 2-2 lane balancer
- The book covers
- 1-1 to 9-9, plus some 10-x, 12-x, 16-16, 32-32, 64-64 and 128-128 configurations; lane balancers for 1, 2, 3, 4, 6 and 8 belts; yellow-belt alternates in a downgrades folder
2 lane balancer or 2 to 2 belt balancer?
Use this lane balancer when two belts each carry uneven left and right lanes. If the problem is that one belt carries more than the other, use the 2 to 2 belt balancer instead; it evens out whole belts but leaves each belt's lanes as they were. This layout uses express parts and is listed for red, blue and turbo undergrounds.
Other 2 lane balancer layouts
A corner version turns both belts 90 degrees in a 5 x 5 square. Like the straight layout it is not marked throughput unlimited.
2 lane balancer blueprint string
Your browser blocked copying. Click the string box, select all and copy it yourself.
The string was exported from Factorio 2.0.69. Copy it, open the game and press Import string on the shortcut bar, then paste. This site decoded the string and checked the entities and size against the preview, but did not import it in the game.
