800 MW Nuclear Friendship Reactor Blueprint (6 Reactors)
Six robot-fed reactors designed to sit in a lake, with four water intake points that are linked inside the plant.

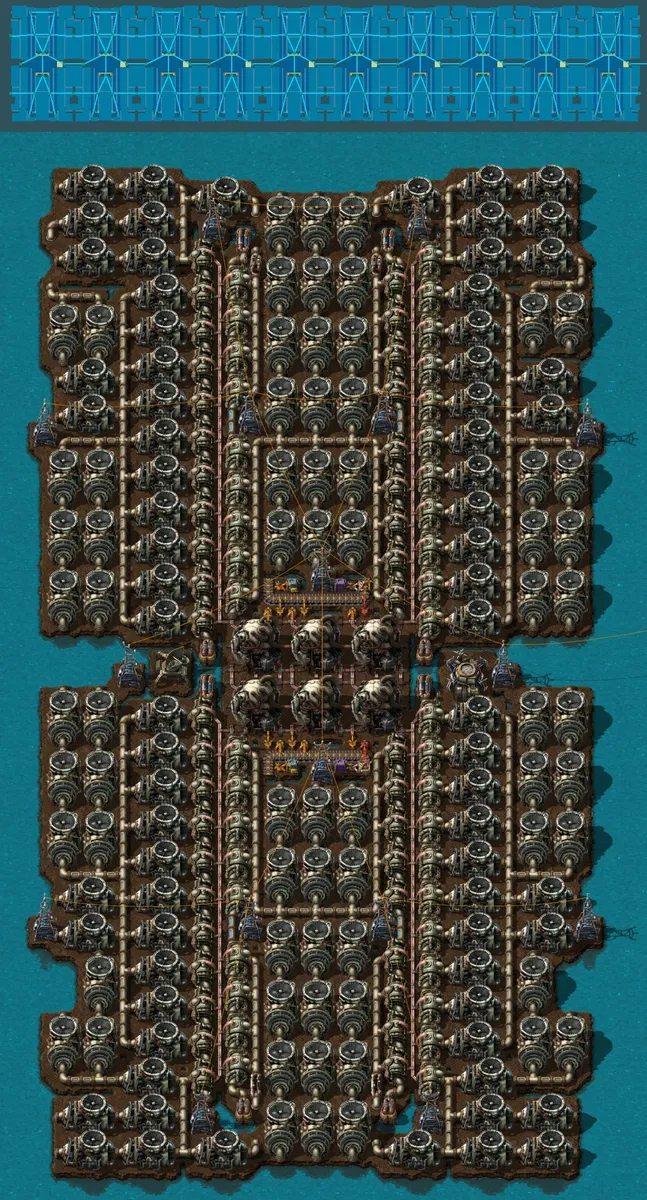

Image of the luziferius Friendship Reactor nuclear plant blueprint
How much power does it make? 6 reactors, 800 MW
800 MWOutput (computed)
- Reactors
- 6
- Output (computed)
- 800 MW
- Output in the design name (MW)
- 800
- Heat exchangers
- 80
- Steam turbines
- 144
- Reactors : exchangers : turbines
- 6 reactors : 80 heat exchangers : 144 steam turbines
- Fuel handling
- logistic-robotsFuel cells are delivered by logistic robots (requester chests).
- Size (tiles, width x height)
- 47 x 83
- Entity quality
- normal
- String exported by Factorio
- 2.0.15.4
- Designer
- luziferius
String exported by Factorio 2.0.15.4. Decoded and checked by this site; not test-imported in the game.
The output shown is computed by this site from the blueprint itself, using normal-quality numbers from the official wiki. Each reactor makes 40 MW of heat plus another 40 MW for every fuelled reactor touching it, which is why a 2x2 block gives 480 MW and a long double row gives 160 MW per reactor minus 160 MW. A heat exchanger turns at most 10 MW of heat into steam and a steam turbine turns that steam into 5.82 MW, so the plant delivers whichever of the three totals is smallest: reactor heat, exchanger capacity or turbine capacity.
Heat exchanger and turbine ratio
A plant is balanced when its exchangers can take all the reactor heat and its turbines can use all the steam. With normal-quality buildings that is one heat exchanger for every 10 MW of heat and about 1.72 turbines per exchanger, because one exchanger makes roughly 103 steam per second and one turbine uses 60. Compare this plant's counts with that: more turbines than needed is harmless, but too few exchangers caps the output.
How fuel cells get in
Fuel cells are brought by logistic robots to requester chests next to the reactors, so the plant needs a logistic network with fuel cells in it. Used cells must be taken out as well, because a reactor holding spent cells stops accepting new ones. A fuel cell burns for 200 seconds whether or not the power is used, so the useful designs only add a cell when the reactor is cool or the steam store is low.
All intakes are connected internally, so on land a single offshore pump can run it. The designer sized it for a constant 800 MW load and kept robot trips low by spreading fuel evenly.
