Central Nucléaire: 16-Reactor Nuclear Plant Blueprint (1.28 GW)
Sixteen robot-fed reactors in a long strip whose exchangers set the output.

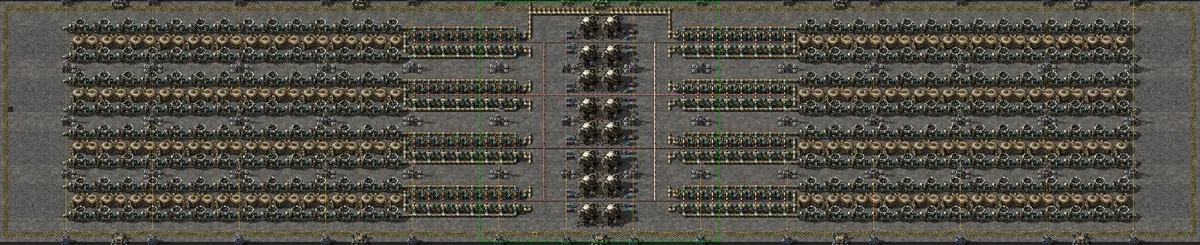

Image of the Volfangel Central Nucléaire nuclear plant blueprint
How much power does it make? 16 reactors, 1,280 MW
1,280 MWOutput (computed)
- Reactors
- 16
- Output (computed)
- 1,280 MW
- Heat exchangers
- 128
- Steam turbines
- 224
- Reactors : exchangers : turbines
- 16 reactors : 128 heat exchangers : 224 steam turbines
- Fuel handling
- logistic-robotsFuel cells are delivered by logistic robots (requester chests).
- Size (tiles, width x height)
- 224 x 54
- Entity quality
- normal
- String exported by Factorio
- 2.0.72.0
- Designer
- Volfangel
The reactors could make 1,760 MW of heat, but 128 exchangers take only 1,280 MW.
String exported by Factorio 2.0.72.0. Decoded and checked by this site; not test-imported in the game.
The output shown is computed by this site from the blueprint itself, using normal-quality numbers from the official wiki. Each reactor makes 40 MW of heat plus another 40 MW for every fuelled reactor touching it, which is why a 2x2 block gives 480 MW and a long double row gives 160 MW per reactor minus 160 MW. A heat exchanger turns at most 10 MW of heat into steam and a steam turbine turns that steam into 5.82 MW, so the plant delivers whichever of the three totals is smallest: reactor heat, exchanger capacity or turbine capacity.
Heat exchanger and turbine ratio
A plant is balanced when its exchangers can take all the reactor heat and its turbines can use all the steam. With normal-quality buildings that is one heat exchanger for every 10 MW of heat and about 1.72 turbines per exchanger, because one exchanger makes roughly 103 steam per second and one turbine uses 60. Compare this plant's counts with that: more turbines than needed is harmless, but too few exchangers caps the output.
How fuel cells get in
Fuel cells are brought by logistic robots to requester chests next to the reactors, so the plant needs a logistic network with fuel cells in it. Used cells must be taken out as well, because a reactor holding spent cells stops accepting new ones. A fuel cell burns for 200 seconds whether or not the power is used, so the useful designs only add a cell when the reactor is cool or the steam store is low.
The designer lists roboports, a transformer area and water from the north as requirements.
Blueprint string
Your browser blocked copying. Click the string box, select all and copy it yourself.
Copy the string and press Import string on the shortcut bar in the game, then paste. It was exported from the Factorio 2.0 version shown above. This site decoded it and counted the reactors, exchangers and turbines, but did not import it in the game; check the designer's notes above for water and start-up needs.
