Factorio 10 to 10 Balancer Blueprint
Evens out ten belts in 11 x 17 tiles with 24 splitters. Balanced, not throughput unlimited, listed for red, blue and turbo.

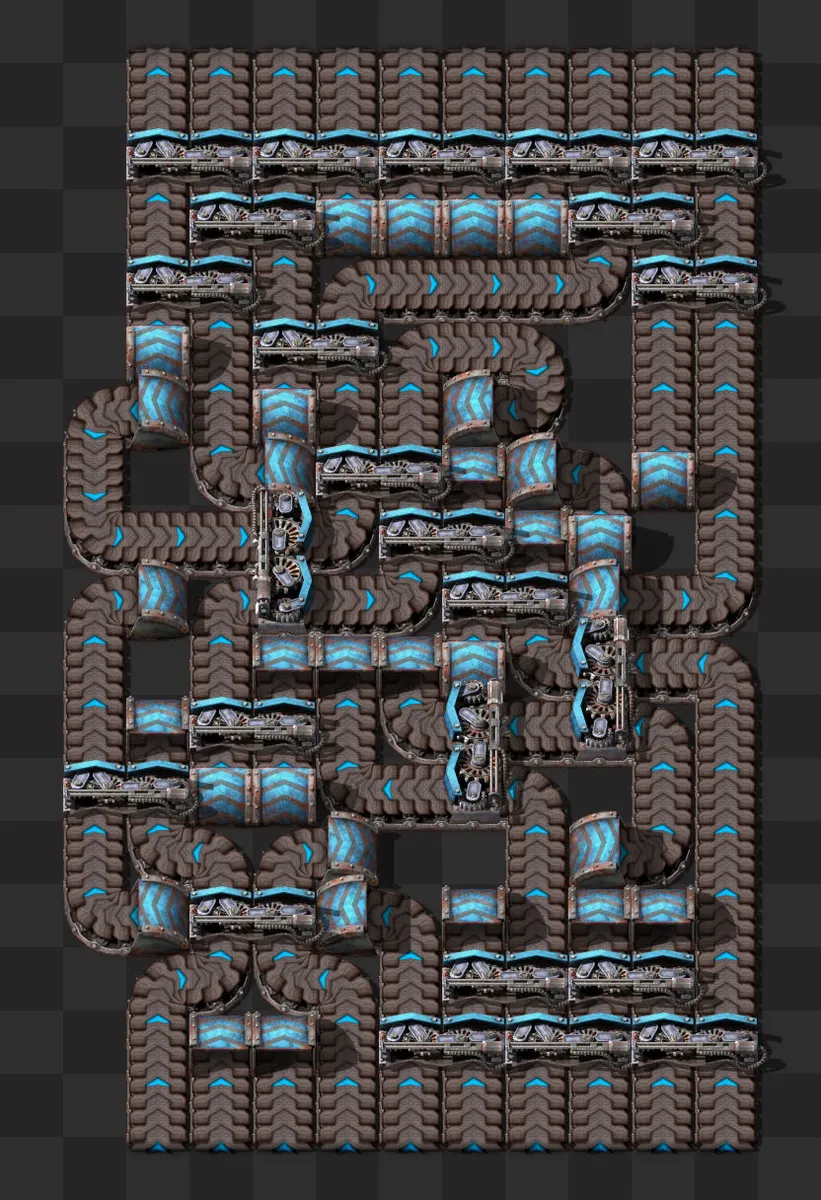

In-game render of the 10 to 10 balancer blueprint
10 to 10 balancer for red, blue and turbo belts
- Input belts
- 10
- Output belts
- 10
- Balancer type
- belt
- Size (tiles, width x length)
- 11 x 17
- Listed belt tiers
- redbluegreen (turbo)
- Throughput unlimited
- No
- Input balanced
- Yes
- Output balanced
- Yes
- Entities in the blueprint
- Express transport belts
- 91
- Express underground belts
- 32
- Express splitters
- 24
- String exported by Factorio
- 2.0.69.0
- Designer
- raynquist
String exported by Factorio 2.0.69. Decoded and checked by this site; not test-imported in the game.
Is the 10 to 10 balancer throughput unlimited?
No. It is balanced: it draws evenly from every input and gives every output an equal share. It is not throughput unlimited, so when only some inputs are fed or some outputs are blocked, an internal bottleneck can keep the total below what the remaining belts could carry. That is fine where all belts run full; where they often do not, check the other layouts and nearby configurations for one marked throughput unlimited.
Built with express (blue) belts, splitters and undergrounds. The collection lists this layout as working with red, blue and turbo undergrounds, so you can rebuild it in any of those three tiers. Yellow is not on that list, and the collection has no yellow version of this configuration.
Compatible underground tiers listed by the source: red, blue, green (turbo). No yellow alternate in the collection.
- Book
- Raynquist's Belt Balancers Fall 2025
- Book folder
- other balancers
- Name in the book
- 10-10 balancer
- The book covers
- 1-1 to 9-9, plus some 10-x, 12-x, 16-16, 32-32, 64-64 and 128-128 configurations; lane balancers for 1, 2, 3, 4, 6 and 8 belts; yellow-belt alternates in a downgrades folder
10 to 10 balancer blueprint string
Your browser blocked copying. Click the string box, select all and copy it yourself.
The string was exported from Factorio 2.0.69. Copy it, open the game and press Import string on the shortcut bar, then paste. This site decoded the string and checked the entities and size against the preview, but did not import it in the game.
Is there a 10 to 11 or 10 to 12 balancer?
No. Ten input belts go only to 8 or 10 outputs in this collection. This 10 to 10 is the nearest; for eleven or twelve outputs there is no ten-input design here.
